Doppelboden Connect 14- L2 - 270 - Schubkästen

D0162400010

Width:
1470
Depth:
1975
Height:
270
NetWeight:
18.93

Alle Maße sind in mm und alle Gewichte in kg.

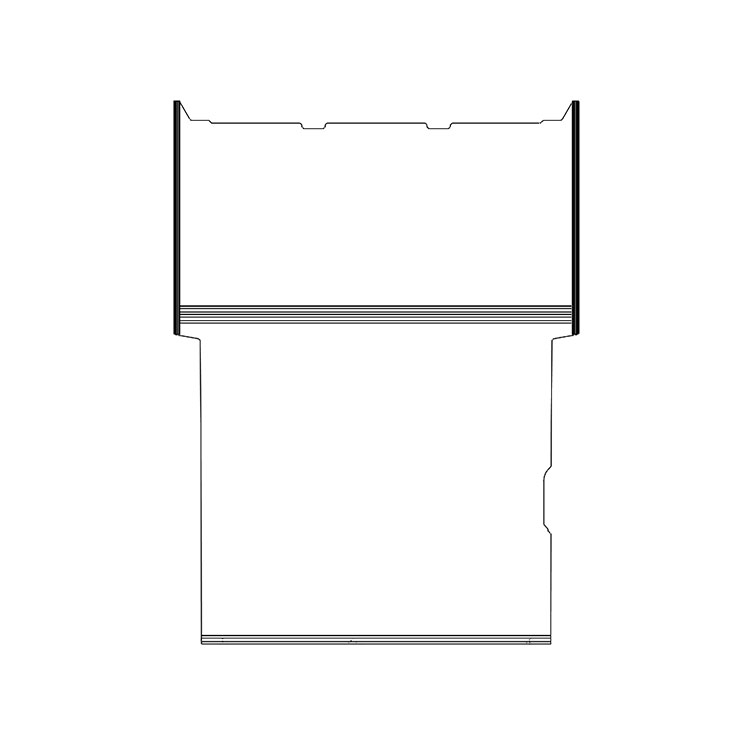

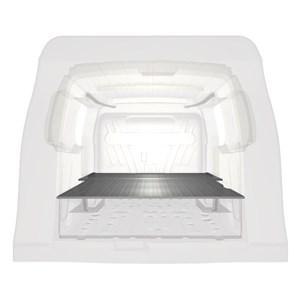

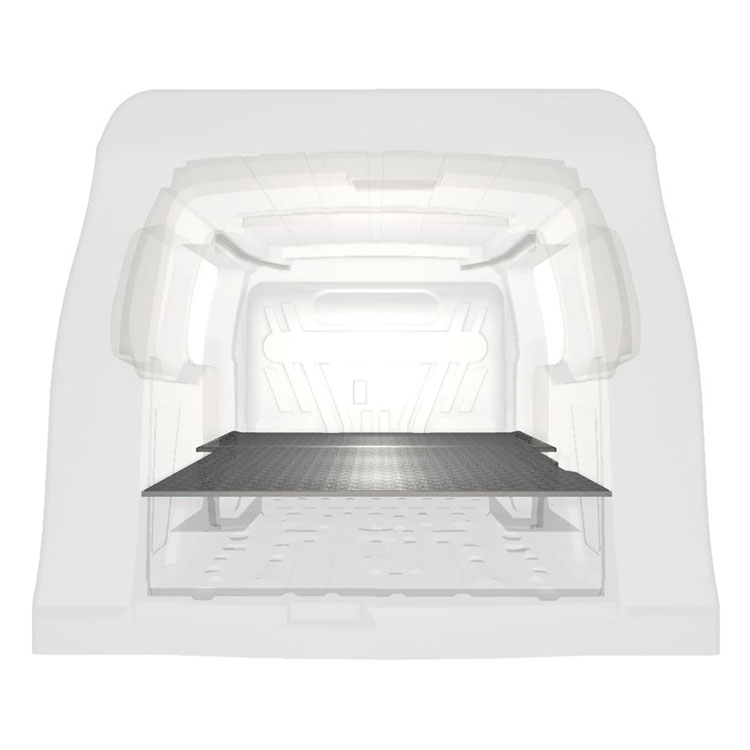

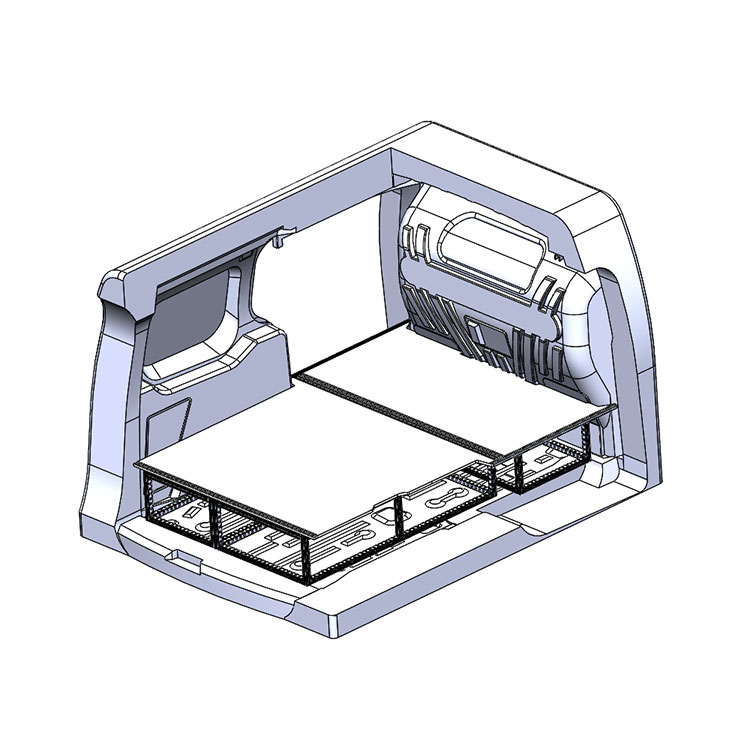

Double floor for a Ford Connect L2 2016-. The floor is designed to fit an extra-long drawer solution with one drawer unit 486x1296x270 and one 648x1296x270 coming out from the rear doors, and one drawer unit 486x1296x270 coming out from the side door.

The floor comes complete with aluminum transverse rails, edging strips and all brackets required for the installation.

The double floor is installed using Modul-System glue, which is supplied separately.

NOTE! Drawer units are not included and must be ordered separately.

  • Total: 2
  • Befestigungsöse T-Nut M8

  • Spannhaken T-Nut M8

  • Total: 2

Monteringsinstruktioner
